Sampling Rate (kHz) 250

Measurement Rate (kHz) 10 (CW measurements, semiconductor detectors)

Display Refresh Rate (Hz) 20

Maximum Rep Rate 10 kHz for Pyroelectric, pulse voltage 20 kHz for Photodiode detectors, peak to peak power

Resolution (% of Full Scale) 0.0004 % full scale

Accuracy (%) ±0.2 % for CW, ±1 % for Peak to Peak, Pulse to Pulse, and Integration Mode (Peak to Peak, Pulse to Pulse, Integration)

Maximum Detector Input Current (mA) 25

Maximum Detector Input Voltage (V) 130

Analog Output (User Selectable) 0-1 V , 0-2 V, or 0-5 V into 1MW mono 3.5 mm phone jack

Analog Output Bandwidth DC-200 kHz (Photodiode), DC-1 MHz (Thermo or Pyro)

Display Type 82 x 62 mm Graphical, Color TFT LCD, ¼ VGA

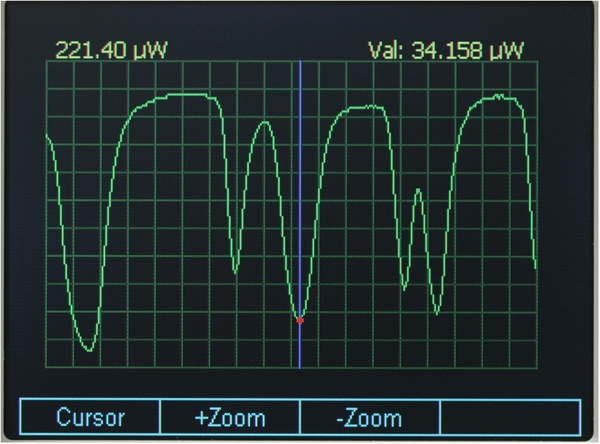

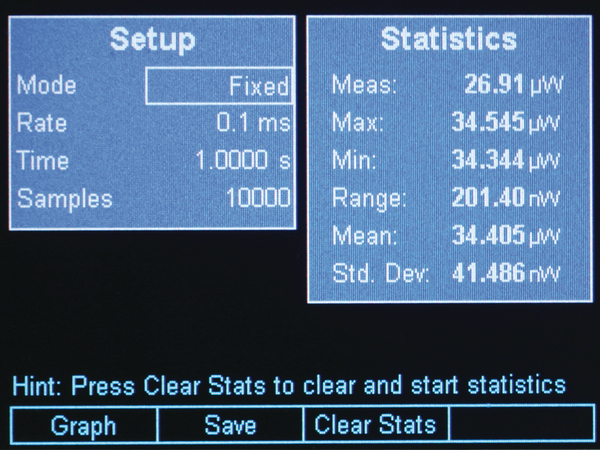

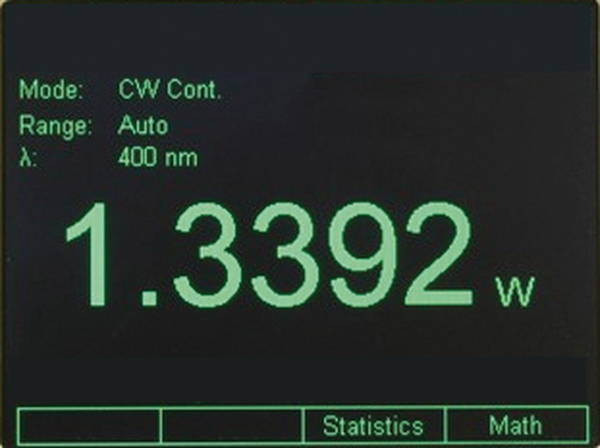

Display Formats 14 mm Numeric, Bar Chart, Min/Max Bar, Statistics, Analog Needle

Communication Interfaces USB

Internal Sample Storage (data points) 250,000

External Sample Storage (data points) Defined by external USB Flash drive (user supplied)

Battery Type and Life (Typical) Rechargeable, 8 Hours

Power Requirements 90-264 VAC, 24V 1.5A

Operating Temperature 5°C to 40°C, <70% RH, non-condensing

Storage Temperature Range -20°C to 60°C, <90% RH

Weight [lb (kg)] 2.3 (1.04)
