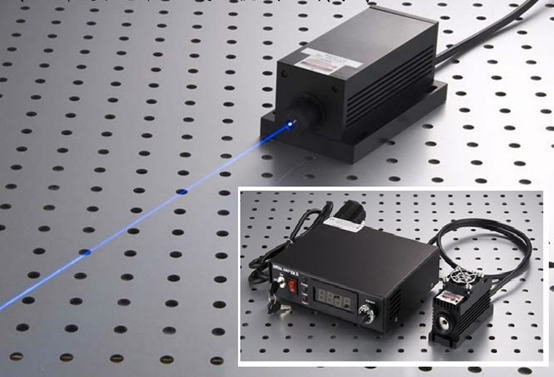

473 nm激光器
產品簡介：
473nm激光在激光顯示,生物醫療,海洋探測等方面都有廣泛的應用,本文利用
LD側面泵浦Nd∶YAG并通過聲光調Q產生1319nm脈沖激光,用Ⅰ類相位匹配
LBO腔內倍頻獲得660nm,1319n...在與660nm經I類相匹配LBO和頻產生473nm激光。
|
Wavelength |
473nm |
|
Spatial Mode |
near TEM00 |
|
Output Power |
>200mW, |
|
Operation Mode |
CW or Modulation |
|
Linewidth |
<1 nm |
|
Polarization |
Linear |
|
Beam Spot Shape |
Circular, aspect ratio<1.1:1 |
|
Pointing Stability |
<0.05 mrad |
|
Beam Diameter(1/e2) |
3 mm |
|
Beam Divergence |
1.5 mrad |
|
Beam Height from Base |
29mm |
|
Power Stability* |
<±5% per 2 hrs |
|
Temperature Stabilizing |
TEC |
|
Warm Up Time |
<5 minutes |
|
Beam Quality (M2) |
<2 |
|
Optimum Operating Temperature |
20~30oc |
|
Storage Temperature |
10~50oC |
|
MTTF** |
10,000 hrs |
|
Dimensions |
155(L)x77(W)x60(H) mm |
|
Power Supply |
A. OEM type LSR-PS-NI: 100(L)x70(W)x55(H)mm3 AC/DC PSU: 85~265V 50/60Hz input
|
|
C. Adjustable Lab type LSR-PS-FA: 178(W)x197(D)x84(H) mm3 |
|
|
Modulation |
0~30khz Analog or TTL |
選型指南
|
LASER473nm-150mw |
激光器 |
473nm藍光半導體激光器,功率150mW,數顯可調。 |
|
LASER473nm-200mw |
激光器 |
473nm藍光半導體激光器,功率200mW,數顯可調。 |
